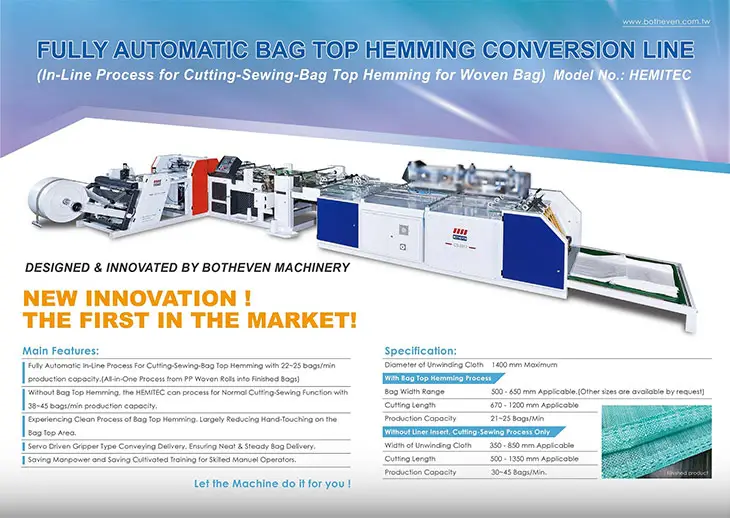

- Fully Automatic In-Line Process For Cutting-Sewing-Bag Top Hemming with 22~25 bags/min production capacity.
(All-in-One Process from PP Woven Rolls into Finished Bags) - Without Bag Top Hemming, the HEMITEC can process for Normal Cutting-Sewing Function with 38~40 bags/min production capacity.
- Experiencing Clean Process of Bag Top Hemming. Largely Reducing Hand-Touching on the Bag Top Area.
- Servo Driven Gripper Type Conveying Delivery, Ensuring Neat & Steady Bag Delivery.
- Saving Manpower and Saving Cultivated Training for Skilled Manuel Operators.
| Model | HEMITEC | |
| 》 Diameter of Unwinding Cloth | 1400 mm Maximum. | |
| With Bag Top Hemming Process | ||
| 》 Bag Width Range | 500 – 650 mm Applicable. (Other sizes are available by request) | |
| 》 Cutting Length | 670 – 1200 mm Applicable. | |
| 》 Production Capacity | 21~25 Bags/Min. | |
| Without Liner Insert, Cutting-Sewing Process Only | ||
| 》 Width of Unwinding Cloth | 350 – 850 mm Applicable. | |
| 》 Cutting Length | 500 – 1350 mm Applicable. | |
| 》 Production Capacity | 30~45 Bags/Min. | |
